Automation studio B&R PLC ST programming PART 13 - WHILE .....DO LOOP for finding highest value.

-
 While do loop is used continuously monitor a condition, if the condition is fulfilled the statement insdie the loop is executed. Otherwise it will jump out of loop. In  tutorial the while is continuously monitoring the Array J[i] which is having integer value, and displaying the largest value. Download Prog file from below drive link:- https://drive.google.com/file/d/1bzc0gqOsBHh_NUvumjbhzAdq090prK-4/view?usp=sharing Explanation:- Below is the flow of While do loo[ for Program execution:- Below are the variables used in While loop example:-
Post a Comment

Automation Studio B&R PLC Part 11 - Automation studio B&R PLC Part 11- Recipe creation in XML ( Save and Load Recipe ) Recipe Management

-

 In this Tutorial we would be learning creation of recipe in XML format stepwise XML is widely used as data is stored in text format and can be accessed by any software.

Click Below link for Video tutorial

Recipe video Tutorial


Explanation

Please follow below steps:-

1. Physical Configuration :








Add file device name and path location to store XML file.

2. Add Mapp services in Configuration









Add MpRecipeXmlin Mapp services


3. Variable type declare:



Chocolate Ingredients is the recipe which contains element



4.Declare variables:




Define variables

5. Program ST logic




6. Click Save to create XML











7. XML Fie created

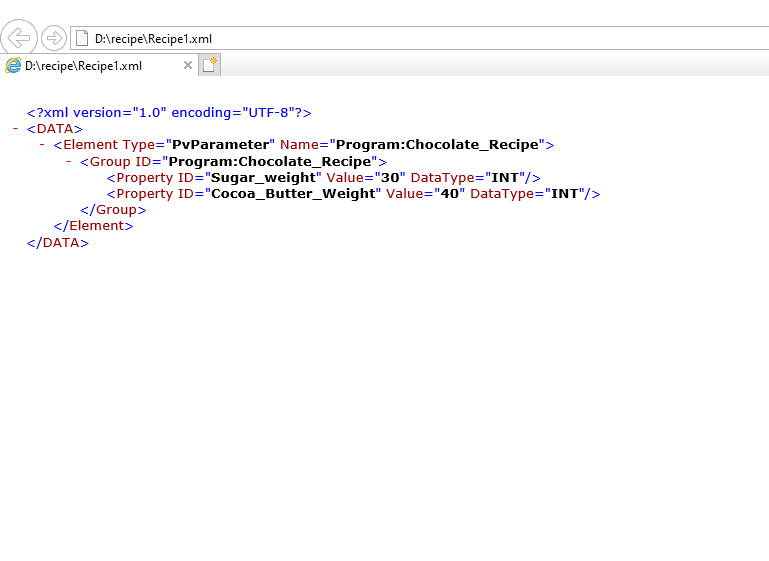

Open XML file in any browser




Thank You
KOTT TUTORIAL
Rohit k





Comments

Post a Comment

Popular posts from this blog

Automation studio B&R PLC ST programming PART 13 - WHILE .....DO LOOP for finding highest value.

-
 While do loop is used continuously monitor a condition, if the condition is fulfilled the statement insdie the loop is executed. Otherwise it will jump out of loop. In  tutorial the while is continuously monitoring the Array J[i] which is having integer value, and displaying the largest value. Download Prog file from below drive link:- https://drive.google.com/file/d/1bzc0gqOsBHh_NUvumjbhzAdq090prK-4/view?usp=sharing Explanation:- Below is the flow of While do loo[ for Program execution:- Below are the variables used in While loop example:-
Next »

Automation Studio B&R PLC Part 10 - Using 'CASE Statement' for programming Complete Tank Level Logic in ST

-
This tutorial is About Learning how to use CASE Statement for Programming Tank Level Logic. CASE Statement are widely used as it helps for easy programming. Click Below for Video Tutorial:- Case statement Video Tutorial CASE Statements are also Called Switch Statement in C++.  Case Statement acts as a switch. We can switch between Staements. Benefits of Using Case Statements :- 1. Better than Cascaded IF else statements. 2. easier to understand 3. Faster execution than IF Statements as CASE acts like a switch.  Syntax:- Explanation:- 'Casename ' is similar to variable name ( user can define any name ) 'Statements' is also similar variable name (user can define any name ) Statements consist of  Logic. we can switch between Different statements i.e switch between different logic. Statement 1 is Executed first when CASE is executed. In statement 1 user have to specify other statements to jump in form of Logic Please watch Youtube video below which would make understand bet
